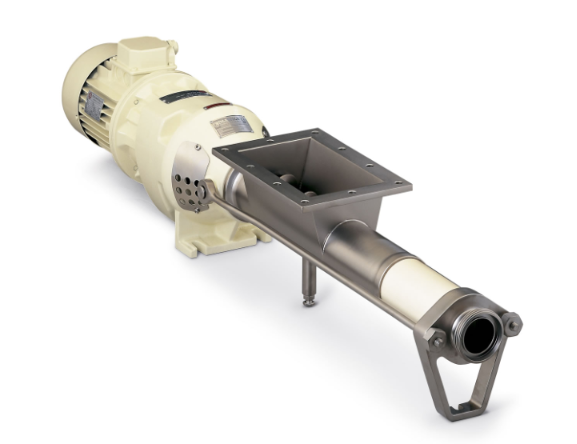

ACO Engineering Pumps Rotor-GWP852 Helical Pump With Hopper features a designed heavy duty bearing frame. Look for the distinctive appearance of the angular, muscular frame to know it's high quality. Positive displacement helical pump with hopper for foodstuffs, supplied with a worm drive.
| Maximum flow | 15 m³/h (250 l/min) |
|---|---|
| Maximum differential head | 6 bar (60 mWC) |
| Power | 0.75 – 7.5 kW (1 – 10 hp) |
| Temperature | -25 – +150 ºC |
| Maximum viscosity | 250,000 cP |
| Rotation speed | 40 to 650 rpm (50 Hz) 50 to 750 rpm (60 Hz) |
| Material | AISI 316 (EN 1.4401) |
| Applications | Pastes, molasses, fruit purées, minced meat, etc. |
